Waste Heat Boiler

Product Introduction

Waste Heat Boiler - Waste Heat Recovery Equipment. It consists of a drum, a movable smoke hood, a furnace mouth section flue, a slanted 1st stage flue, a slanted 2nd stage flue, a final 1st stage flue, a final 2nd stage flue, a feeding pipe (discharging chute), oxygen lance, nitrogen sealing device and nitrogen sealing plug, inlet hole, micro differential pressure extraction device, and brackets and hangers for the flue. The waste heat boiler is divided into six circulation loops, each loop consisting of a downcomer and a riser. The feedwater for each flue is introduced from the drum to the lower header of each flue through the downcomer and then enters the respective heating surfaces. Water generates steam after passing through the heating surfaces and enters the inlet header, then is introduced back into the drum through the riser. Flanges are used to connect between each flue.

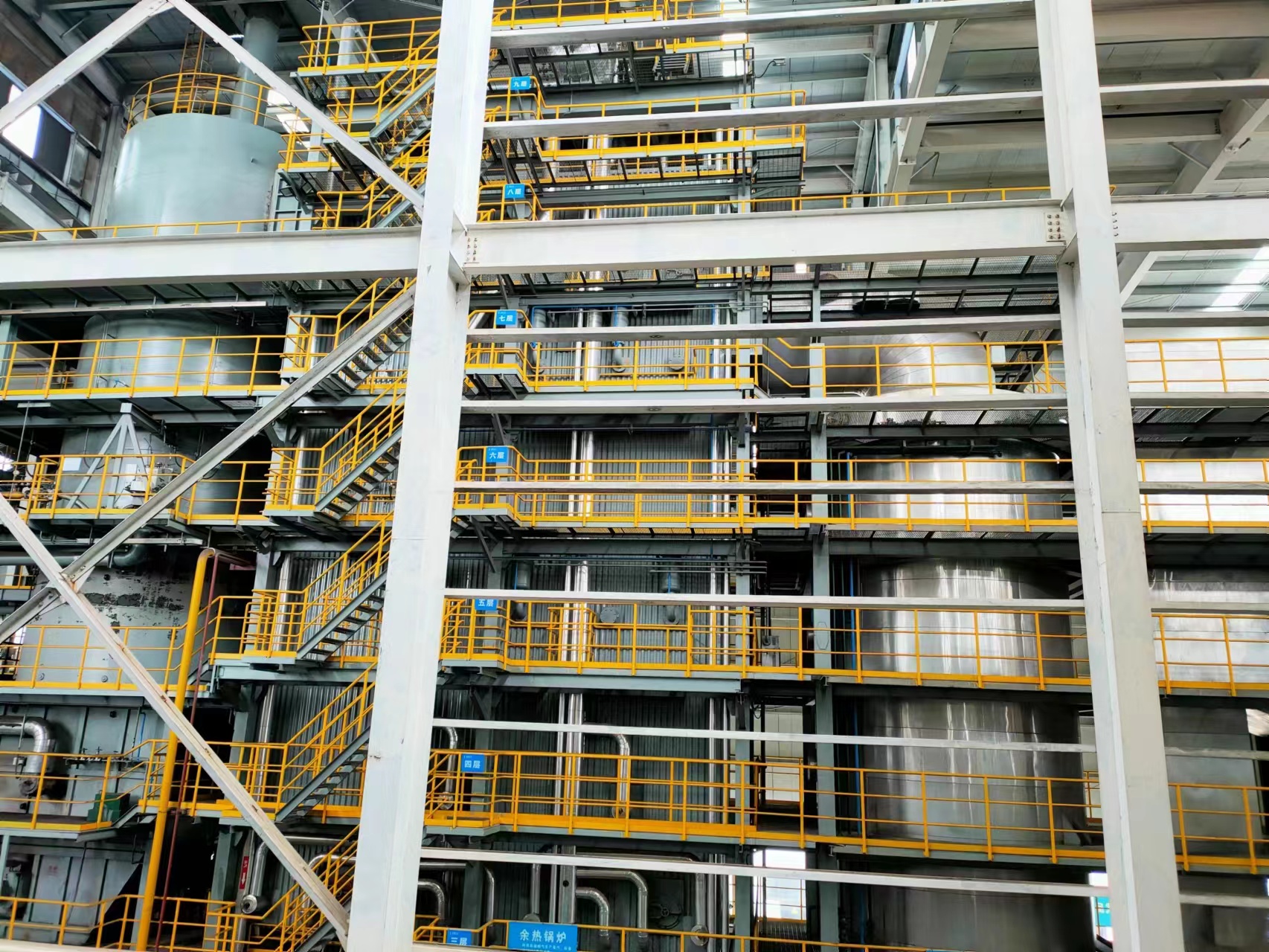

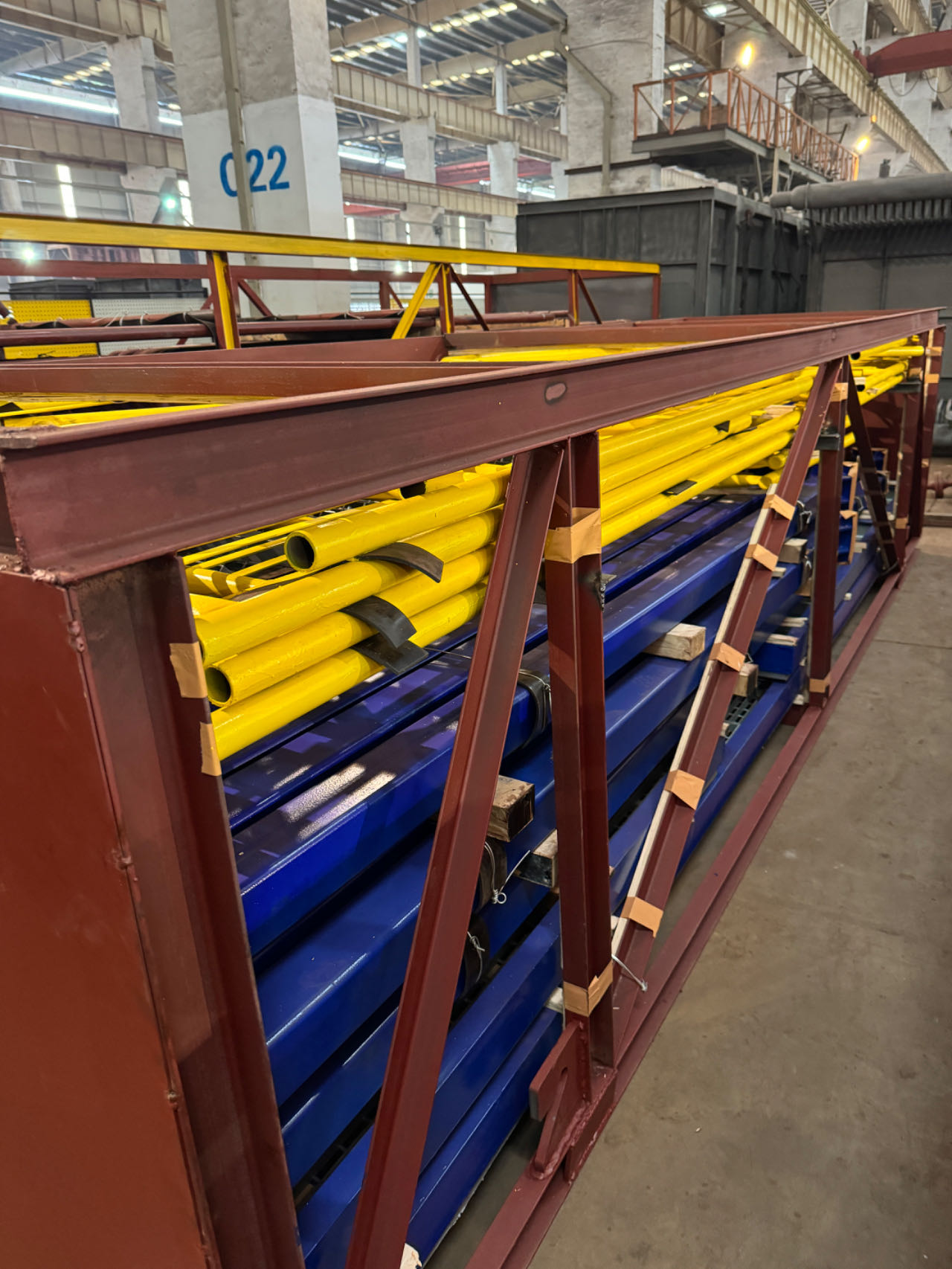

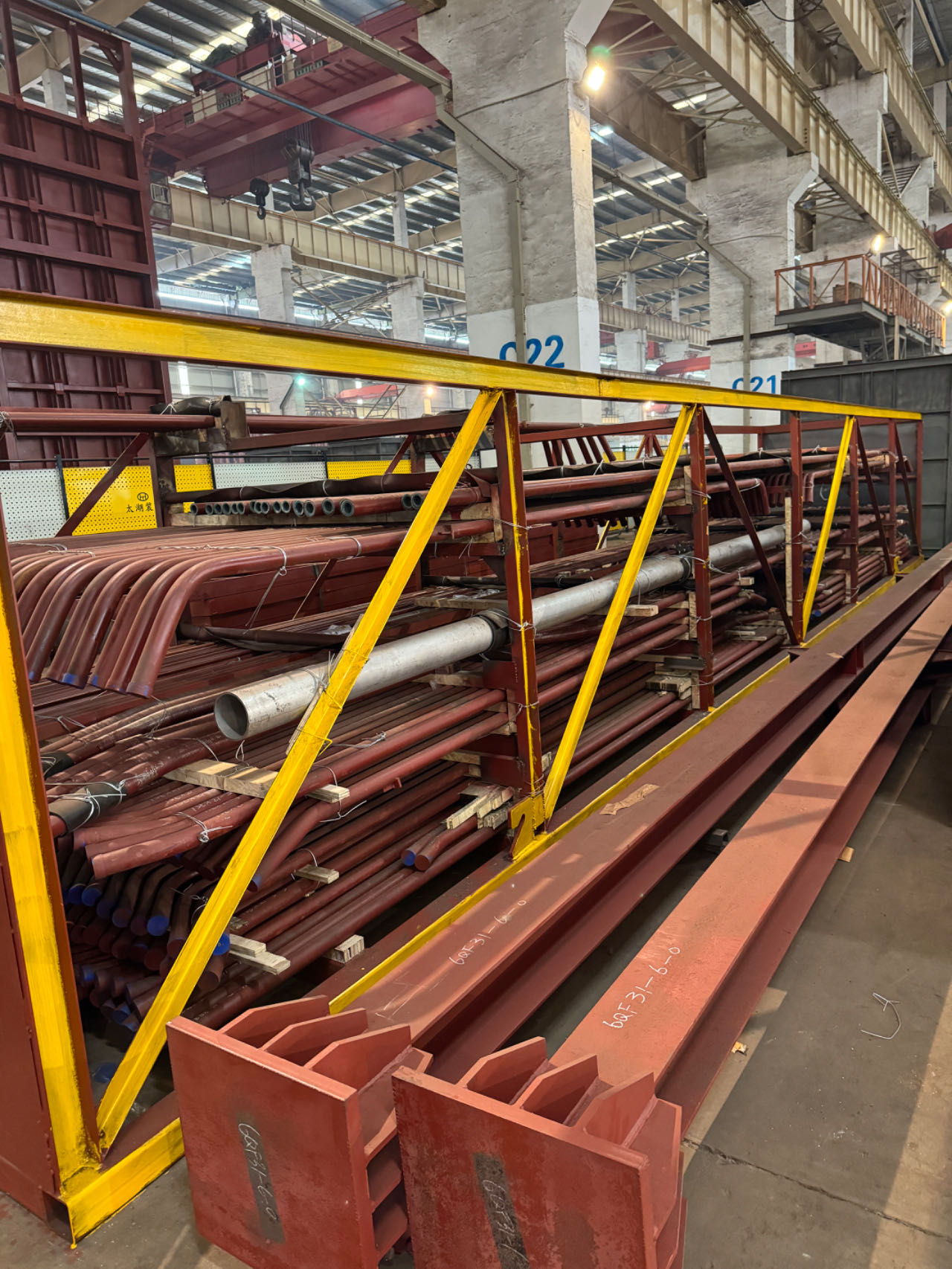

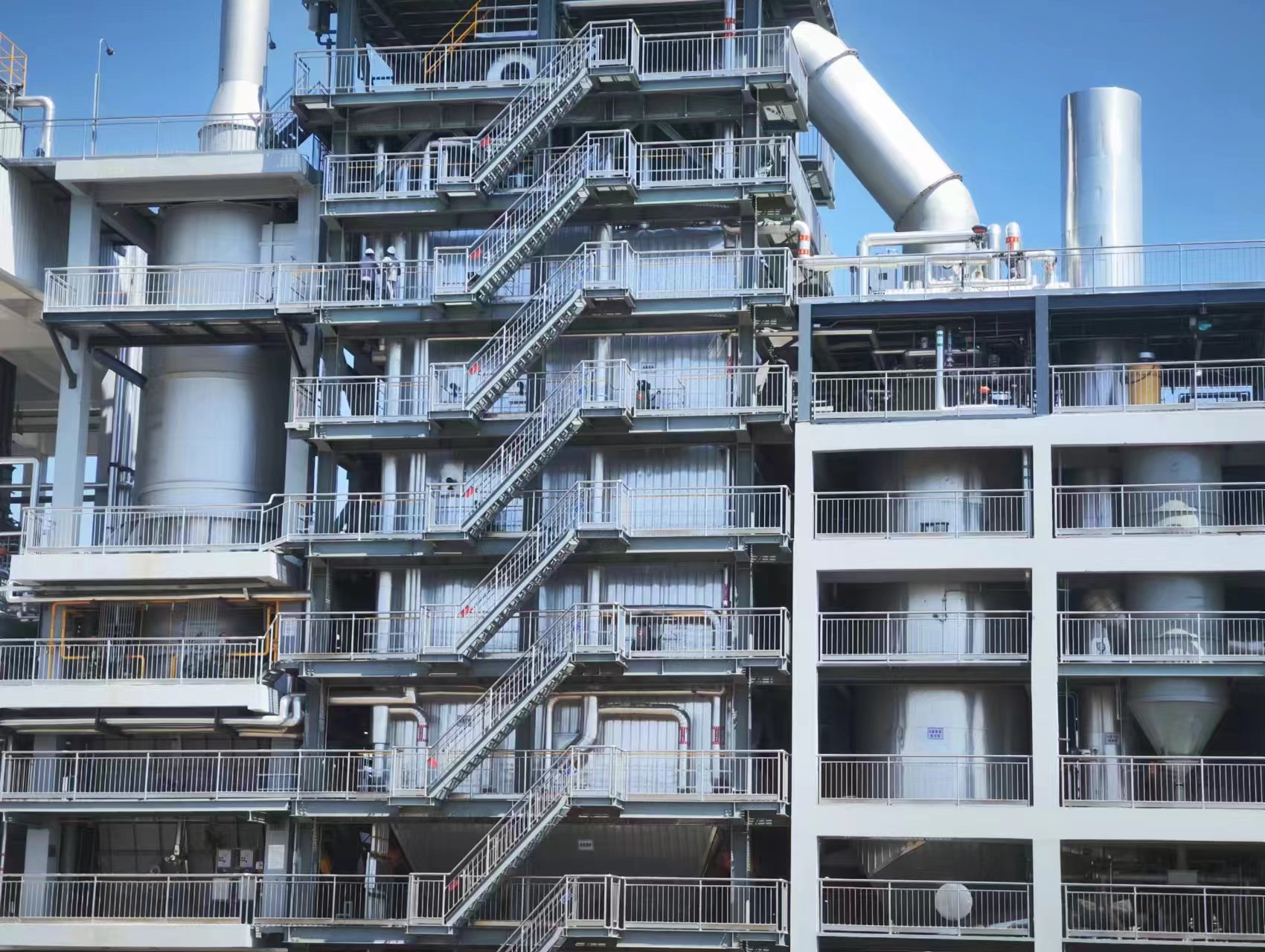

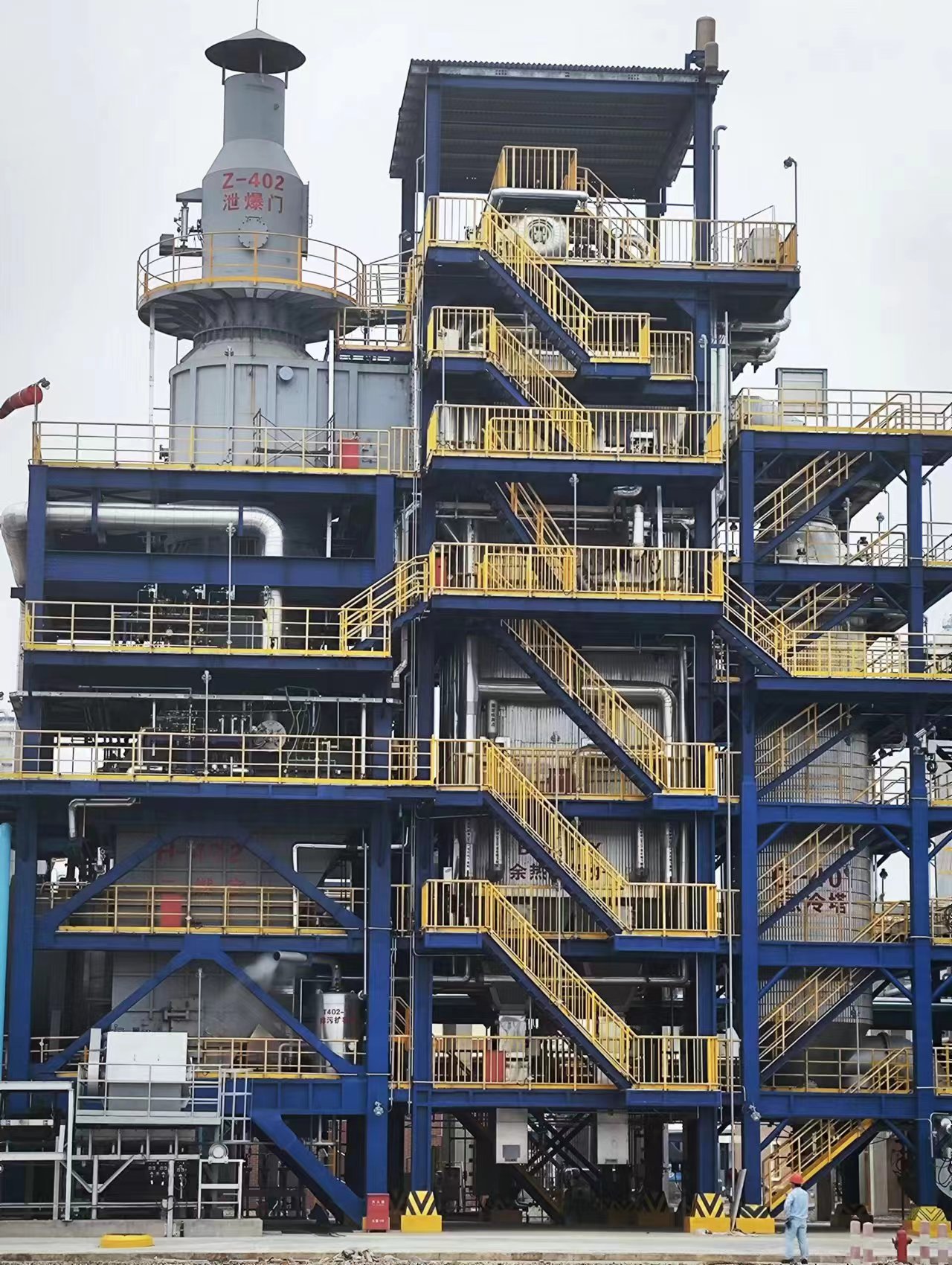

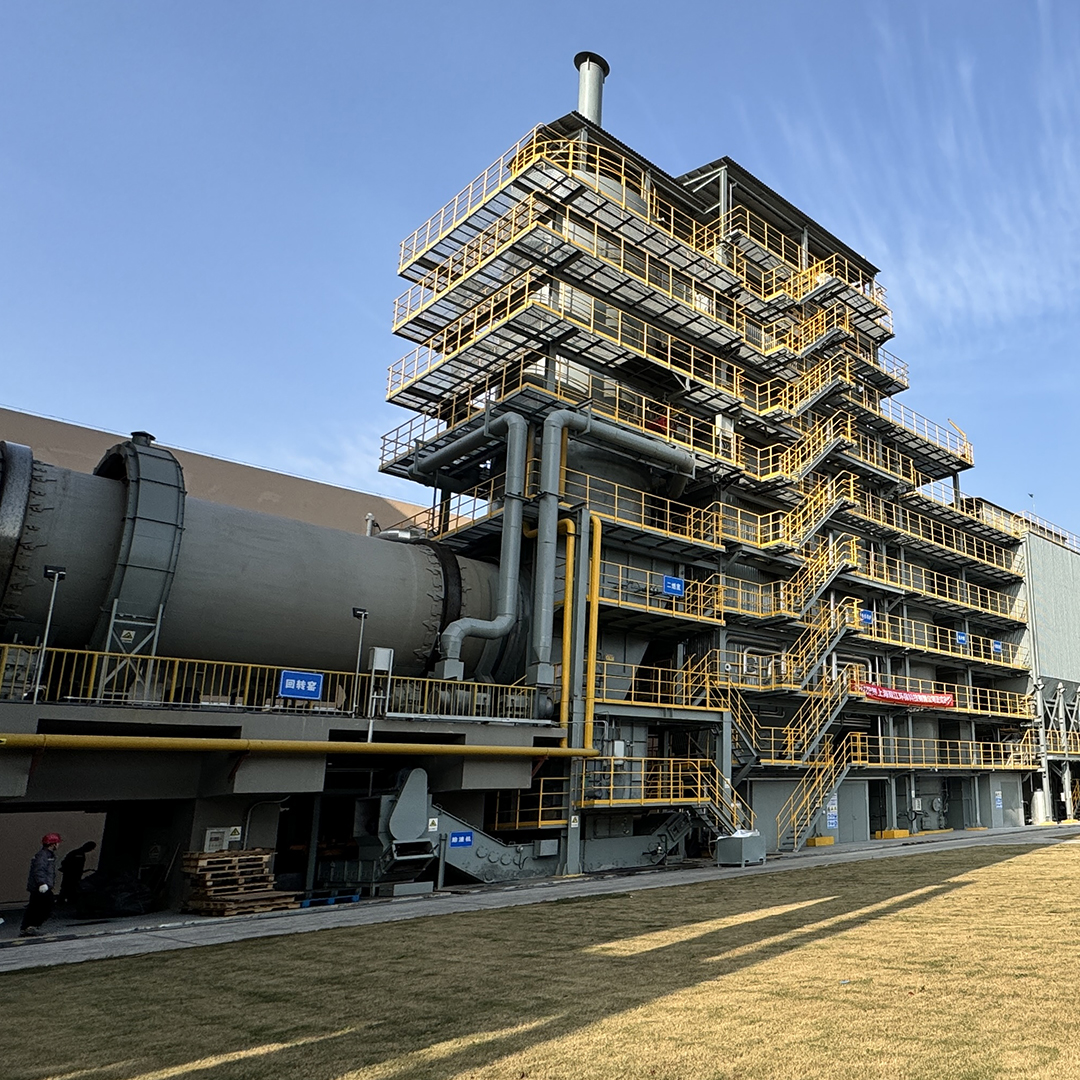

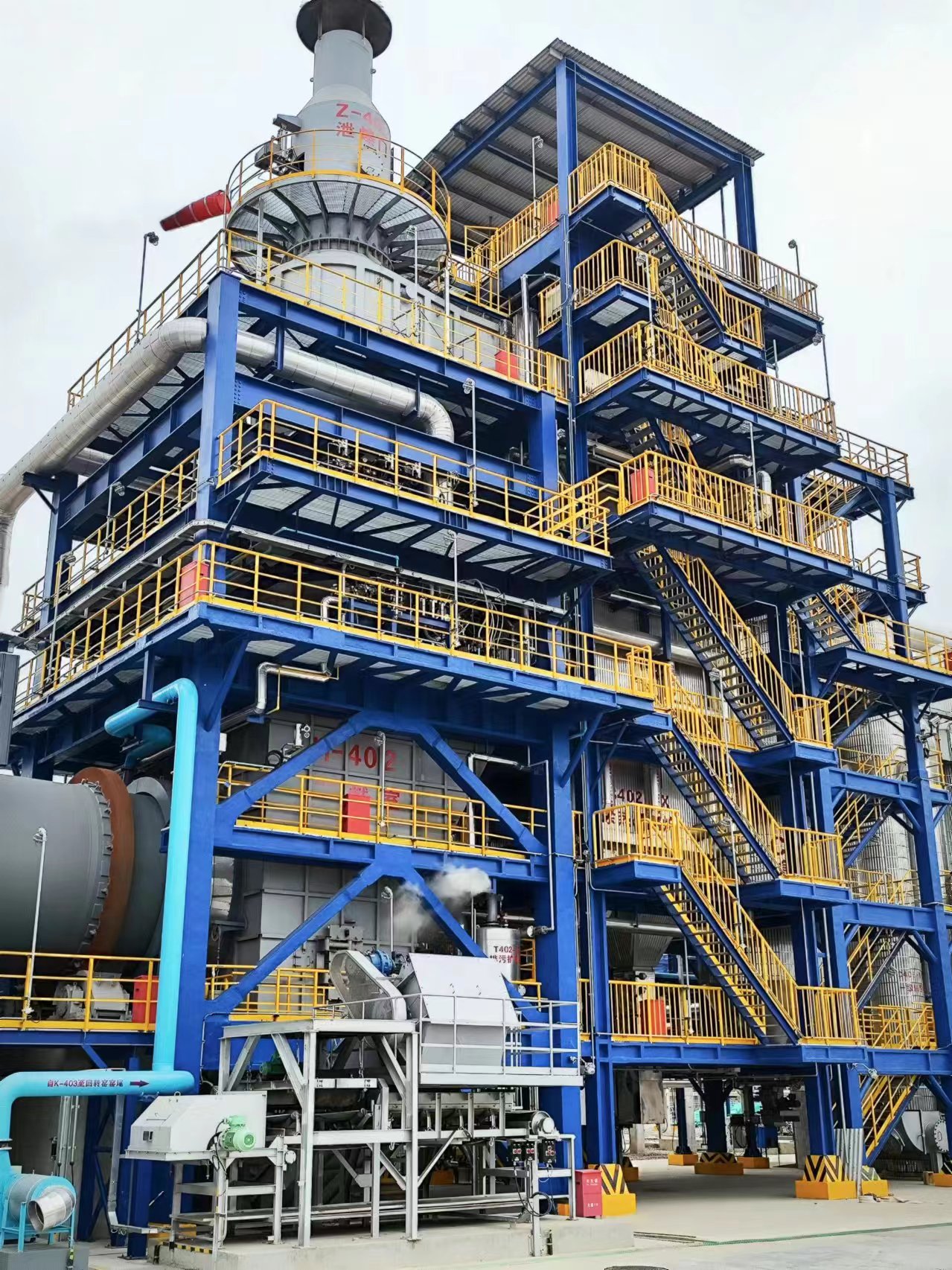

Image Display
