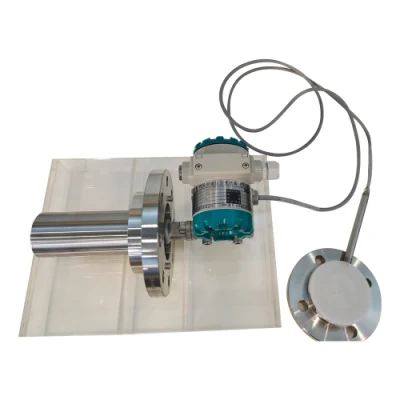

4 20mA Remote Long-Distance Differential Pressure Transmitter Sensor IP67 Sil CE Certified
Basic Info.
|
Model NO. |
PDS883 |
|
Structure Type |
Diffused Silicon Pressure Transmitter |
|
Accuracy Grade |
0.04%(up to 0.025%) |
|
IP Rating |
IP67 |
|
Customized |
Non-Customized |
|
Operating Humidity |
Long-Term Relative Humidity ≤95% |
|
Mounting Flange |
S25c, 304, 316, 316L |
|
Long-Term Drift |
≤±0.1%Fs/10 Years |
|
Static Pressure Influence |
≤0.03%Fs/16MPa |
|
Type |
Remote Pressure Transmitter |
|
Measuring Medium |
Liquid, Gas, Steam |
|
Pressure range |
-0.5MPa~14MPa |
|
Certification |
CE, Atex, Iecex, Cu-Tr(Eac), CCS, Sil2/3, Exiallct |
|
Hart Communication |
230Ω≤r≤500Ω; 15.8V≤u≤45V |
|
Sealing Ring |
PTFE, Nitrile Rubber, Fluorine Rubber, Metal Seali |
|
High Precision |
±0.04%(up to ±0.025%) |
|
Response Time |
≤90ms (Data Refresh Time: 50ms) |
|
Trademark |
H |
|
Specification |
DN25-DN100 |
|
HS Code |
9026201090 |
|
Transport Package |
Carton /Wooden Box |
|
Origin |
China |
Product Description
The product adopts the world's advanced single crystal silicon composite sensor, highly reliable electronic modular design, precise temperature and linear correction system and intelligent manufacturing technology to ensure the high precision, high stability and consistency of the product.
The product has complete intelligent diagnosis, simulation, monitoring, local configuration and multiple communication functions, complete specifications of wetted materials, high-index electromagnetic compatibility and lightning protection features, etc., in electric power, metallurgy, chemical industry, coal chemical industry, petroleum , Petrochemical, environmental protection, building materials, light industry, nuclear industry and other industries have been widely used.
Product Parameters
| Warranty Period | 3 Years |
| Place Of Origin | China |
| Protection Grade | Ip66/ip67 |
| Hart Communication | 230Ω≤r≤500Ω; 15.8v≤u≤45v |
| Operating Humidity | Long-term Relative Humidity ≤95% |
| Electrical Connector | M20*1.5 Internal Thread; 1/2 Npt Internal Thread |
| Sealing Ring | Ptfe, Nitrile Rubber, Fluorine Rubber, Metal Sealing Ring |
| Mounting Flange | S25c, 304,316,316l |
| High Precision | ±0.04%(up To ±0.025%) |
| Long-term Drift | ≤±0.1%fs/10 Years |
| Response Time | ≤90ms (data Refresh Time 50ms) |
| Static Pressure Influence | ≤0.03%fs/16mpa |
