Steam Natural Vortex Liquid Gas Meter Water Air Digital Gas Vortex Liquid Fuel Oil Mechanical Stainless Steel Flow Meter
.webp)
Basic Info.
| Model NO. | RFC |
| Warranty | 1-1.5 Year |
| Main Application | Water, Wastewater, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas |
| Sensor | Plug-in |
| Type | Probe Type Flow Meter |
| Measuring Principle | Mechanics |
| Certification | CE, Sil, Cu-Tr |
| Ambient Temperature | -40~120 Degree Celsius |
| Tube Material | Stainless Steel |
| Medium Viscosity | DN15<5 MPa.S, DN25~DN100<50MPa.S |
| Analog Output Deviation | ≤±0.02mA |
| Power Supply | DC24V |
| Transport Package | Carton /Wooden Box |
| HS Code | 8477900000 |
| After-sales Service | Online Service |
| Accuracy | >±1% |
| Size | DN15-DN100 |
| Application | Industrial Production |
| Measuring Media | Liquid, Gas, Steam |
| Measurement Object | Open Channel |
| Temperature Range | -80-250 Degree Celsius |
| Operating Pressure | 0.6-5MPa |
| Ratio of Measuring Range | 10:01 |
| Repeatability and Reproductivity | ≤±0.75% |
| Explosion-Proof | Exia Iict6, Exd Iict6 |
| Communication | Hart |
| Origin | China |
Product Description
Product Description

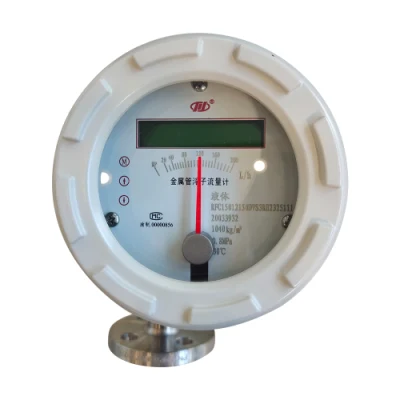

Metal tube rotameter adopts variable area measure principle, It can measure both liquid and gas in test tube. It hs such features as stable structure, wide adaptable temperature, high accuracy, cheap price and wide adaptable range.
Rotameter is composed of a metal cone and a suitable formed float which can move freely up and down along the cone.
Adaptable
1. Measure low flow range liquid and gas.
2. Continuing flow measure and automatic control.
3. For the medium which need readjust density, temperature, pressure.
Features
1. Liquid, gas and steam can be measured
2. Low-fllow rate medium can be measured
3. Low Reynolds number medium can be measured
4. Simple structure, site indicator is adapted
5. Power is not needed for medical indictor type. So it is safe even in the explosion environment.
6. Wide measure range 10:1
7. Corrosion gas and liquid can be measured
8. Low pressure lose
9. Easily install
Product Parameters
| Local mechanical indication type | Intelligent type | |
| Accuracy | +/- 1.5% of displayed value | |
| Nominal size(mm) | DN15-DN100 | |
| Pressure rating | 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa, 5.0MPa, for pressure>5.0MPa, plz consult supplier | |
| Ambient temperature | -40ºC~120ºC | -25ºC~60ºC |
| Ambient temperature effect | ≤±1%10ºC | |
| Electric connector | M20*1.5, NPT1/2 | |
