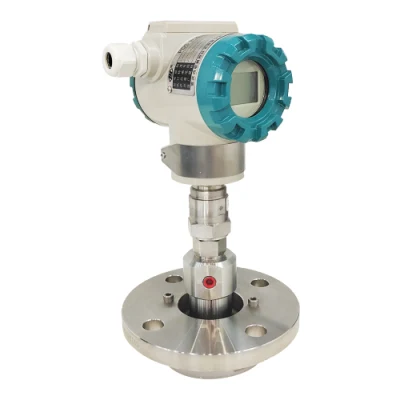

Oil Vibration Explosion Proof 4 20mA Pressure Long-Distance Remote 4-20 Ma High Precision 0.04% Intelligent Transmitter Sensor IP67 Sil CE Certified

Oil Vibration Explosion Proof 4 20mA Pressure Long-Distance Remote 4-20 Ma High Precision 0.04% Intelligent Transmitter Sensor IP67 Sil CE Certified

Email: service@boshigao.com

Tel: 008613817045597

Whatsapp: 8613817045597

Oil Vibration Explosion Proof 4 20mA Pressure Long-Distance Remote 4-20 Ma High Precision 0.04% Intelligent Transmitter Sensor IP67 Sil CE Certified

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Basic Info.

Model NO.	PDS873
Structure Type	Diffused Silicon Pressure Transmitter
Accuracy Grade	0.04%(up to 0.025%)
IP Rating	IP67
Customized	Non-Customized
Operating Humidity	Long-Term Relative Humidity ≤95%
Mounting Flange	S25c, 304, 316, 316L
Long-Term Drift	≤±0.1%Fs/10 Years
Static Pressure Influence	≤0.03%Fs/16MPa
Type	Remote Pressure Transmitter
Measuring Medium	Liquid, Gas, Steam
Pressure range	-0.1MPa~10MPa
Certification	CE, Atex, Iecex, Cu-Tr(Eac), CCS, Sil2/3, Exiallct
Hart Communication	230Ω≤r≤500Ω; 15.8V≤u≤45V
Sealing Ring	PTFE, Nitrile Rubber, Fluorine Rubber, Metal Seali
High Precision	±0.04%(up to ±0.025%)
Response Time	≤90ms (Data Refresh Time: 50ms)
Trademark	H
Specification	DN25-DN100
Transport Package	Carton /Wooden Box
Origin	China

Product Description

Product Description

The product adopts the world's advanced single crystal silicon composite sensor, highly reliable electronic modular design, precise temperature and linear correction system and intelligent manufacturing technology to ensure the high precision, high stability and consistency of the product.

The product has complete intelligent diagnosis, simulation, monitoring, local configuration and multiple communication functions, complete specifications of wetted materials, high-index electromagnetic compatibility and lightning protection features, etc., in electric power, metallurgy, chemical industry, coal chemical industry, petroleum , Petrochemical, environmental protection, building materials, light industry, nuclear industry and other industries have been widely used.

Product Parameters

Warranty Period	3 Years
Place Of Origin	China
Protection Grade	Ip66/ip67
Hart Communication	230Ω≤r≤500Ω; 15.8v≤u≤45v
Operating Humidity	Long-term Relative Humidity ≤95%
Electrical Connector	M20*1.5 Internal Thread; 1/2 Npt Internal Thread
Sealing Ring	Ptfe, Nitrile Rubber, Fluorine Rubber, Metal Sealing Ring
Mounting Flange	S25c, 304,316,316l
High Precision	±0.04%(up To ±0.025%)
Long-term Drift	≤±0.1%fs/10 Years
Response Time	≤90ms (data Refresh Time 50ms)
Static Pressure Influence	≤0.03%fs/16mpa

Measuring range of sensor

Code	PDS873G	PDS873A
B	-100~100 kP	0~25 kPa(A)
C	-100~400 kPa	0~130 kPa(A)
D	-100~3000 kPa	0~500 kPa(A)
E	-0.1~20 MPa	0~3.0 MPa(A)
F	-0.1~40 MPa	0~20 MPa(A)
